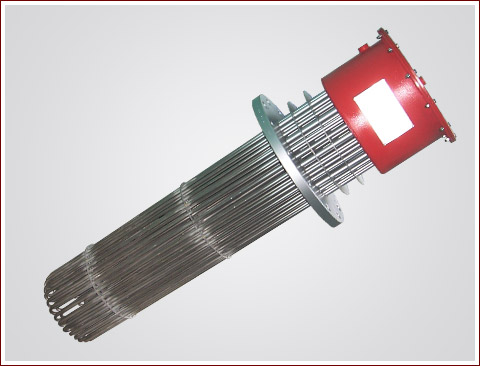

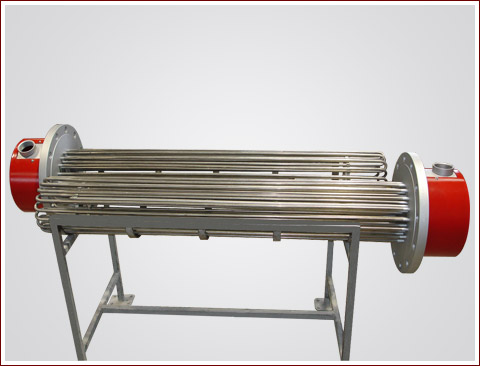

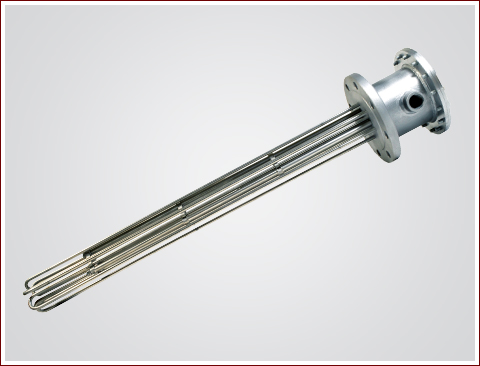

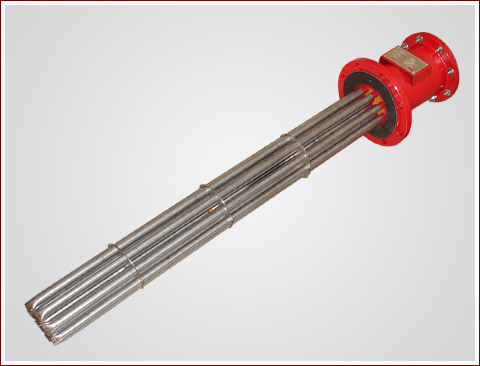

Flanged immersion heater

Immersion heaters are designed for applications in tanks, with volumes of controlled fluid viscosity and equipment requiring effective equipment in order to raise and maintain the temperature, allowing for more fluidity for feeding pipes, tanks, vessels and equipment.

Designed for continuous works, they are made of tubular heating elements in direct contact with the fluid or replaceable elements (cartridges) in order to facilitate maintenance and prevent outflow from the tank (drainage). The heating elements will be immersed and the connection with the process is made up by the flanges. It has accessories for control and protection. Connection box to protect the terminals.

Designs are in line with the expectations and needs for applications, meeting the current standards as per the process.

Technical Features:

• Watt: 0.5 kW to 400kW (for equipment);

• Voltage: Up to 690Vac;

• Pressure: 150 to 600PSI;

• Diameter of flange: DN 2" to 24";

• Length immersed: up to 4000mm;

• Temperature: in accordance with the application and with the fluid;

• Heating element: Carbon Steel, Stainless Steel AISI 304, Stainless
Steel AISI - 316L and Incoloy.

Advantages:

• High performance;

• Thermal efficiency;

• Dedicated designs;

• Self and monitored production;

• Qualified and certified manufacturing process;

• Custom equipment.
