Air heater

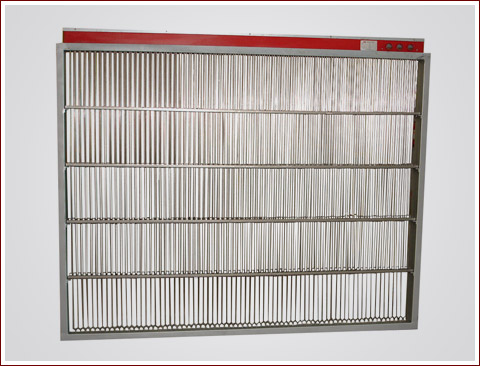

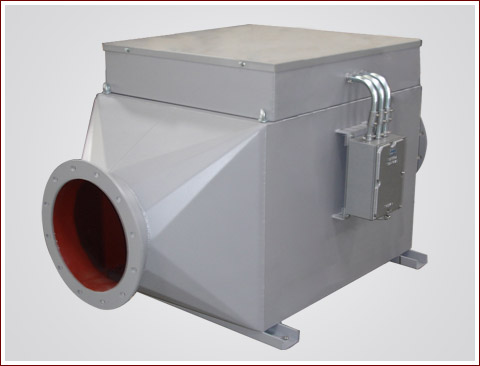

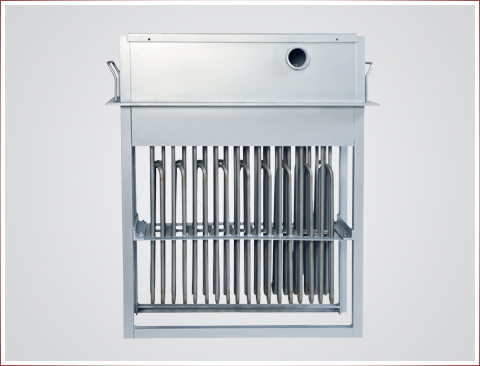

The electric air heaters are designed to operate in industrial oven, dryers, air conditioning systems and furnaces. Can be provided either in the form of simple drawers for easy installation in existing air ducts, as well as in the form of complete sets, with their ducts, fastening flanges and transition ducts, allowing them to be easily adapted to existing or designed systems. Optionally, these heaters can be supplied already fitted with heating insulation.

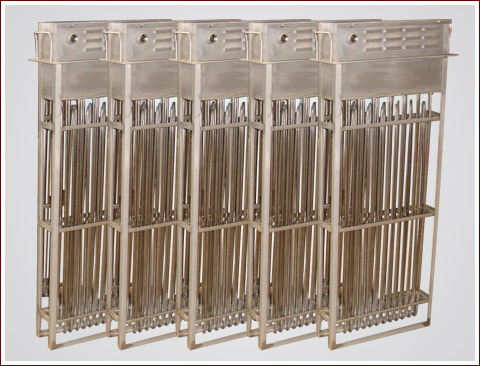

The air heaters are equipped with tubular heating elements, and they may be produced with plain or finned tubular heating elements.

Custom Projects in which air flow, working temperature and duct dimensions are analysed.

Technical Features

• Wattage: 0,5kW to 500kW;

• Optional equipment configuration in series;

• Voltage: up to 690Vac;

• Temperature: up to 500°C;

• Dimension: according to the project;

• Frame: Carbon Steel, Stainless Steel AISI 304, Stainless Steel
AISI - 316L;

• Heating elements: Stainless Steel AISI -304 or Incoloy.

Advantages

• High performance;

• Thermal efficiency;

• Technical staff for studying the feasibility and efficiency
of the design;

• Self and monitored production;

• Qualified and certified manufacturing process;

• Custom equipment;
