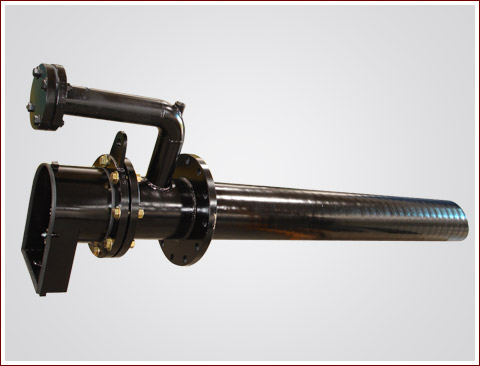

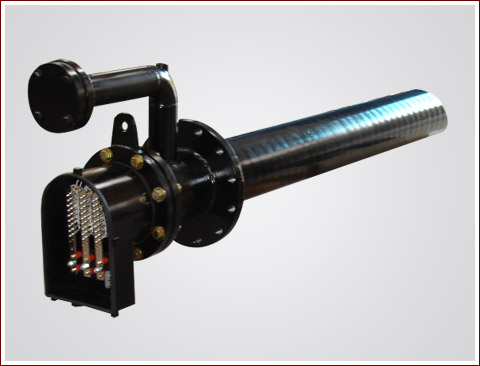

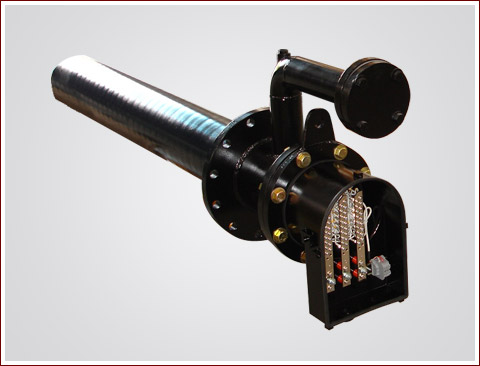

Suction heater

Suction Heaters are developed for applications in tanks, with volumes of fluids where warming is necessary to improve pumping.

Designed for continuous works, they are composed of replaceable tubular heating elements (cartridges) in order to facilitate maintenance and prevent outflow from the tank (drainage). The hollow device (container) comprises a nozzle for fluid outlet connected in series with the pump and possible additional connections. It has instruments used for control and safety, and a connection box to protect the terminals.

Designs are in line with the expectations and needs for applications, meeting the current standards as per the process.

Technical Features:

• Wattage: 0.5 kW to 400kW (for equipment);

• Voltage: Up to 690Vac;

• Pressure: 150 PSI;

• Diameter of vessel: DN 4" to 24";

• Length: up to 4500mm;

• Temperature: in accordance with the application and with the fluid;

• Vessel : Carbon Steel, Stainless Steel AISI 304, Stainless Steel
AISI - 316L;

• Heating elements: Carbon Steel, Stainless Steel AISI 304, Stainless
Steel AISI - 316L and Incoloy;

• Watt density: 0.5 w/cm² to 1.8 w/cm².

Advantages:

• High performance;

• Thermal efficiency;

• Self and monitored production;

• Qualified and certified manufacturing process;

• Custom equipment;

• Equipment for Hazardous Areas Ex.
