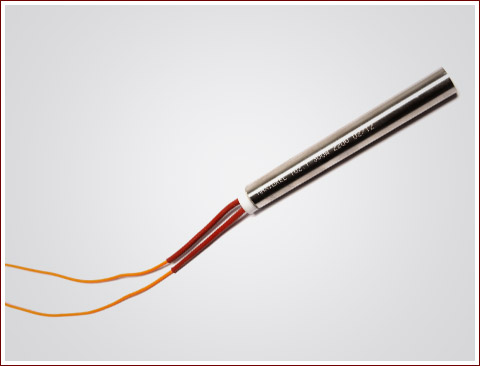

Low density cartridge heater
Used for heating tools, rubber process, sealing machines.
Technical Features:
• Sheath material: Stainless Steel AISI-304;
• Core: steatite;
• Voltage: 12V, 24V, 48V, 110V, 220V, 380V, 440V;
• Wattage: 30W to 2000W.
• Cables: hybrid alloy with fiberglass or PTFE insulation;
• Protection for cables: wire braided, armor cable and
ceramic bead insulation;
• Watt density: 0.5 w/cm² to 3.5 w/cm².
